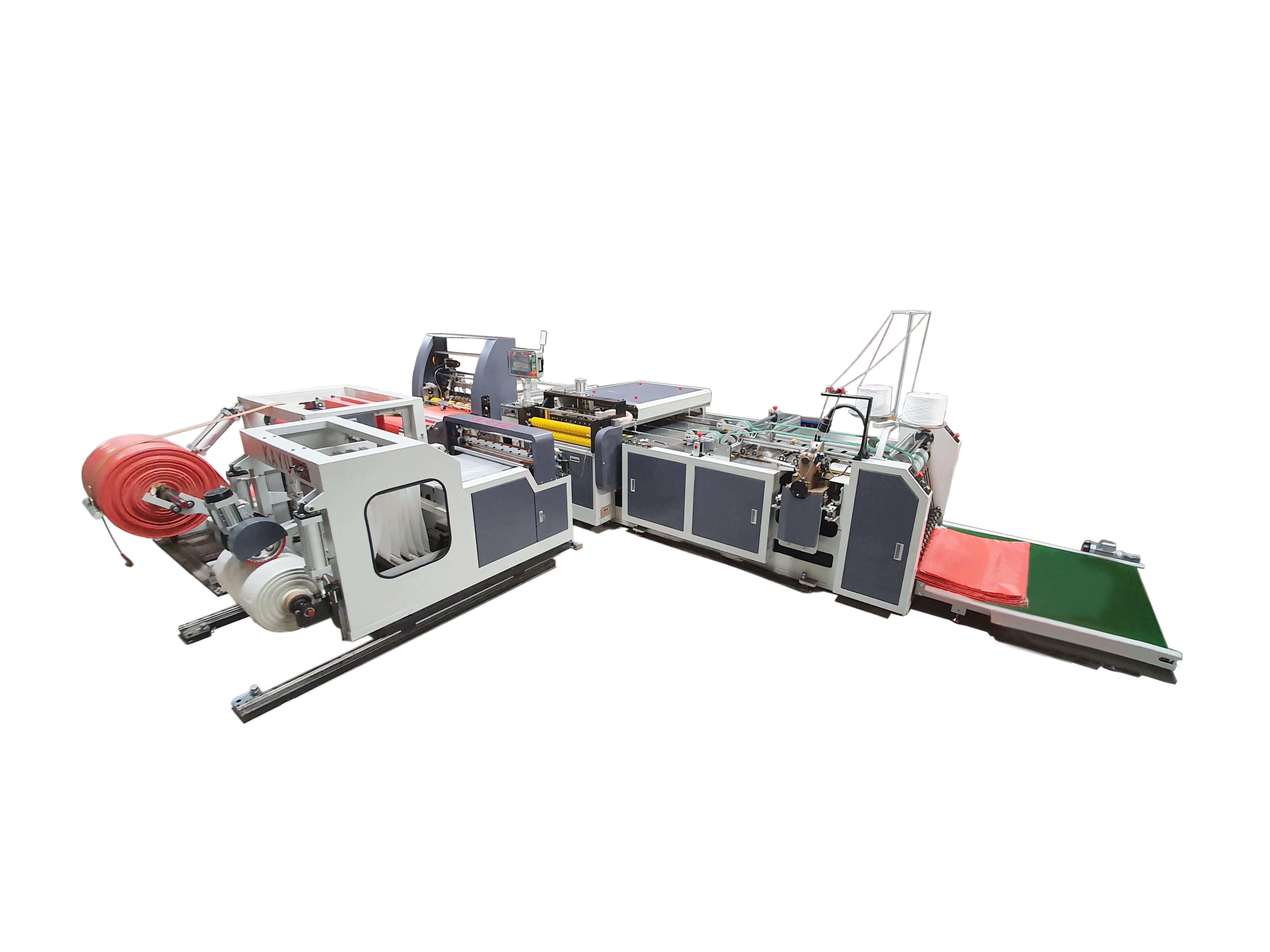

1. Machine Feature
1). Applicable for woven bag ,laminated bag,OPP color printing bag,M-side bag and three-in-one paper-plastic bag
2).Edge Position Control (EPC) for Unwinding
3). Servo controlling for cutting accuracy
4). Cold cutting with Bag Mouth Open System equipped
5).Servo motor control transferring after cutting, achieves high quality inserting and sewing
6). Auto seal, cut and insert the PE film
7). PLC Control, Digital Display (10 inches) for Operation Monitor and Operation Setting
8). Auto sewing, stacking and counting
9).Simply operation, can be ran by only one worker
10).Can be used as cutting and sewing machine
2.Technical specifications:
Item | Parameter | Remarks |
Fabric Width | 350-700mm | The width of woven bag |
Max Diameter of Fabric | φ1200mm | |
PE Film Width | +20mm(wider than woven bag) | |
PE Film Thickness | ≥0.01mm | |
Cutting Length of Fabric | 600-1200mm | |
Cutting Accuracy | ±1.5mm | |
Stitch Length | 7-12mm | |
Production Speed | 24-36pcs/min | |
Power Supply Voltage | Three phase 380/220V | 50Hz |
Total Rated Power | 18.5kw | |
Total Gas Pressure | ≥0.8MPA | |
Dimension of Main Machine(mm) | 5300*1900*1500 | |
Dimension of Fabric Unwinder(mm) | 1960*1400*1200 | |
Dimension of PE Film Unwinder(mm) | 1340*1120*1400 | |
Dimension of Collector | 1500*1250*200 | |
Total Weight | About 4T |
