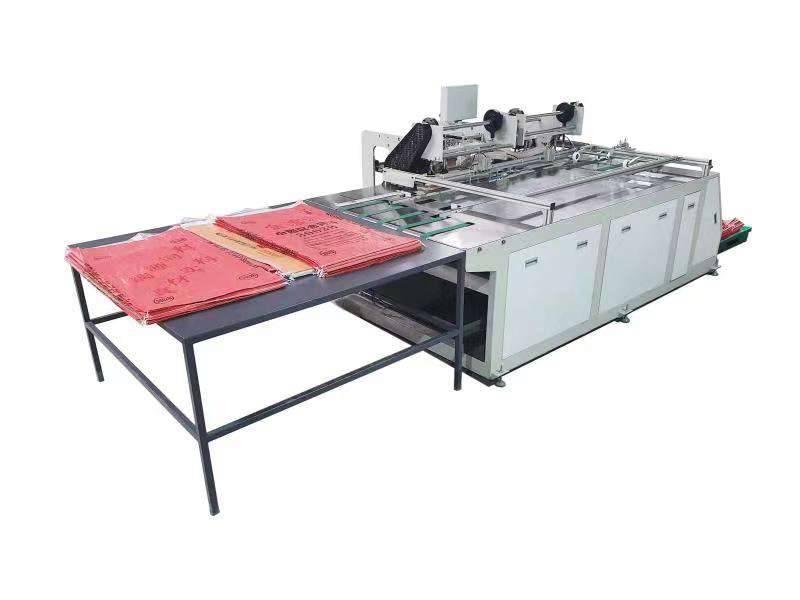

Cutting And Sewing Machine

I Technical performance:1 Nonwoven bag, coated woven bag, OPP color printing bag, M side bag can be applied to

I.Technical performance:

1. Non woven bag, coated woven bag, OPP color printing bag, M side bag can be applied to this machine;

2. EPC automatic correction, high precision automatic cutting of woven bags;

3. The whole machine is controlled by PLC microcomputer system, humanized large screen LED interface (10 inches) data display

4. Automatic seam bottom, automatic bag counting;

5. The machine is easy to operate and can be operated by one person.

Item

Parameter

Remark

Fabric Width(mm)

350-700

Cutting Length(mm)

600 -1400

Cutting Accuracy(mm)

± 1.5

Stitch Range(mm)

7.0 -12

Production Speed(pcs/min)

20 - 38

Power Supply(V )

3 Phase 380/220V

50HZ

Total Power(KW)

8.6

Air Pressure(MPA)

≥ 0.8

Dimension Of Main Machine(mm)

4000*2000*1400

Dimension Of Unwinder(mm)

2300*1500*1100

Dimension Of Collector(mm)

2000*800*200

Total Weight(T)

2.2
